Texture Memory in CUDA | What is Texture Memory in CUDA programming
Texture Memory in CUDA |
What is Texture Memory in CUDA programming
We have talked about the global
memory, shared memory and constant
Memory in previous article(s), we also some example like Vector Dot Product, which
demonstrate how to use shared memory. CUDA architecture provides another kind
of memory which we call Texture Memory. In this article, we learn about texture
memory and we answer following questions
1.
What is Texture
memory in CUDA?
2.
Why Texture
memory?
3.
Where the
Texture memory resides?
4.
How does
Texture memory work’s in CUDA?
5.
How to use
Texture memory in CUDA?
6.
Where to use
and where should not use Texture memory in CUDA?
7.
Example of
using texture memory in CUDA, step by step.
8.
Performance
consideration of Texture memory.
I’ll present an example at the end of
the article, so keep reading because for understanding texture memory basics is
very important.
Motivation
When we looked at constant
Memory, we saw how exploiting special memory spaces under the right
circumstances can dramatically accelerate applications. We also learned how to measure
these performance gains in order to make informed decisions about
performance choices. In this article, we will learn about how to allocate and use
texture memory. Like constant memory, texture memory is another variety
of read-only memory that can improve performance and reduce memory traffic when
reads have certain access patterns. Although texture memory was
originally designed for traditional graphics applications, it can also be used
quite effectively in some GPU computing applications.
Article
Objective
In the course of this article, you
will accomplish the following;
·
You will learn about the performance
characteristics of texture memory.
·
You will learn how to use one-dimensional
texture memory with CUDA C.
·
You will learn how to use Two-dimensional
texture memory with CUDA C.
Don’t worry; we also answer all the
above questions that we have previously mentioned.
Why / ( What is ) Texture memory in CUDA?
If you read the motivation to this article,
the secret is already out: There is yet another type of read-only memory that
is available for use in your programs written in CUDA C. Readers familiar with
the workings of graphics hardware will not be surprised, but the GPU’s
sophisticated texture memory may also be used for general-purpose
computing. Although NVIDIA designed the texture units for the classical OpenGL
and DirectX rendering pipelines, texture memory has some properties that make
it extremely useful for computing.
Like
constant memory, texture memory is cached on chip, so in some situations it
will provide higher effective bandwidth by reducing memory requests to off-chip
DRAM. Specifically, texture caches are designed for graphics applications where
memory access patterns exhibit a great deal of spatial locality. In
a computing application, this roughly implies that a thread is likely to read
from an address “near” the address that nearby threads read, as shown in Figure
Note:
Arithmetically, the four addresses
shown are not consecutive, so they would not be cached together in a typical
CPU caching scheme. But since GPU texture caches are designed to accelerate
access patterns such as this one, you will see an increase in performance in
this case when using texture memory instead of global memory.
Let’s
go in Deep
The read-only texture memory space is cached. Therefore, a texture
fetch costs one device memory read only on a cache miss; otherwise, it just
costs one read from the texture cache. The
texture cache is optimized for 2D spatial locality, so threads of the
same warp that read texture addresses that are close together will achieve best
performance. Texture memory is also designed for streaming fetches with a
constant latency; that is, a cache hit reduces DRAM bandwidth demand, but not
fetch latency.
In certain
addressing situations, reading device memory through texture fetching can be an
advantageous alternative to reading device memory from global or constant
memory.
Note:
For Spatial Locality
Link 1 [Overview
of spatial locality]
Link 2 [Detailed
description on spatial locality with example]
Where the Texture memory resides
Following fig. will let you know where the texture memory
resides in CUDA architecture.
How
does Texture memory work’s and how to use texture memory in CUDA
Texture memory is read from kernels
using the device functions described at here.
Reading the Texture memory
The process of reading a texture is
called a texture
fetch. The first parameter of a texture fetch specifies an
object called a texture reference.
A texture reference defines which part
of texture memory is fetched. As detailed in Section 3.2.10.1.3 in CUDA
programming guide 4.2; it must be bound through runtime functions
to some region of memory, called a texture, before it can be used by a kernel. Several
distinct texture references might be bound to the same texture or to textures
that overlap in memory.
A
texture reference has several attributes. One of them is its dimensionality that specifies whether
the texture is addressed as a one-dimensional array using one texture coordinate, a
two-dimensional array using two texture coordinates, or a three-dimensional
array using three texture coordinates. Elements
of the array are called texels, short for “texture elements.” The
type of a Texel is restricted to the basic integer and single-precision
floating-point types and any of the 1-, 2-, and 4-component vector types
defined in Section B.3.1 in CUDA
programming guide 4.2).
Other
attributes define the input and output data types of the texture fetch, as well
as how the input coordinates are interpreted and what processing should be
done.
A
texture can be any region of linear memory or a CUDA array (described in
Section 3.2.10.2.3 in CUDA
programming guide 4.2). Table F-2
lists the maximum texture width, height, and depth depending on the compute
capability of the device.
Textures
can also be layered as described in Section 3.2.10.1.5. CUDA
programming guide 4.2
A
point to remember regarding Texture memory
Within a
kernel call, the texture cache is not kept coherent with respect to global
memory writes, so texture fetches from addresses that have been written via
global stores in the same kernel call return undefined data. That is, a thread
can safely read a memory location via texture if the location has been updated
by a previous kernel call or memory copy, but not if it has been previously
updated by the same thread or another thread within the same kernel call. This
is relevant only when fetching from linear or pitch-linear memory because a kernel cannot write to CUDA arrays.
Note:-
If
textures are fetched using tex1D(),
tex2D(), or tex3D() rather than tex1Dfetch(),
the hardware provides other capabilities that might be useful for some
applications such as image processing,
More
details can be found at here
Nice Texture Memory Features /
Advantages of Texture memory in CUDA
I would like to discuss some basic features of texture memory
before start looking how to use in your CUDA code. From NVidia, they provide
some very awesome feature alongside it inherits some nice features from the
graphics pipeline.
Feature of texture memory for programmer convince, here some of
them,
Get some things for free:
–
Linear
interpolation of adjacent data values
– Automatic
normalization of data when you fetch it
• [0,1] for
unsigned values
• [-1,1] for
signed values
– Automatic
normalization of array indices to [0,1]
• e.g. same
code for all problem sizes

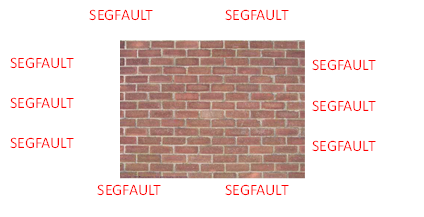

– Automatic
boundary handling
Fig 3
Disadvantages of
Texture memory in CUDA
• Read-only
– Can only
update 3D textures by performing a memcpy to some rectangular region of the
texture
– However if
your texture is 2D, you can write directly into it via a surface object
(go through CUDA
programming guide 4.2 )
When to Use Texture
Memory in CUDA
•
If you update your data rarely but read it
often...
•
…especially if there tends to be some kind of
spatial locality to the read access pattern…
•
i.e. nearby threads access nearby locations in
the texture
•
…and especially if the precise read access
pattern is difficult to predict
•
Also, you need to use texture memory in order
to visualize your data using the graphics pipeline (consult the CUDA SDK samples)
When
Not to Use Texture Memory in CUDA
We
should not use texture memory when we read our input data exactly once after update
it.
Example
of texture memory in CUDA
For understanding
example please go through the following function, which we are going to use in
this example to demonstrate how to use texture memory in CUDA, functions are;
cudaBindTextureToArray, cudaCreateChannelDesc and Texture functions (Texture object and Reference API)
I have already explained that, the
process of reading a texture is called a texture fetch. The first parameter of a
texture fetch specifies an object called a texture reference. A texture reference
defines which part of texture memory is fetched.
Steps of using Texture in Your
CUDA code
Now we learn how
to use texture memory in your CUDA C code. I’ll illustrate this step by step.
Overview of steps
·
Declare the texture memory in CUDA.
·
Bind the texture memory to your
texture reference in CUDA.
·
Read the texture memory from your
texture reference in CUDA Kernel.
·
Unbind the the texture memory from
your texture reference in CUDA.
Step 1
Declaration of texture memory in
CUDA
Texture (<type>,
<dim>, <readmode>) <texture_reference>
|
• <texture_reference> is
a handle tied to compile-time
attributes of some texture array. Declaration DOES NOT
·
Allocate storage
·
Associate storage with the handle
·
• <type>
is type of texel data returned from
an access to the texture
·
Basic integer or floating types
·
1, 2, or 4 element builtin vector
types
• <dim>
is dimensionality of texture array
·
1, 2, or 3; optional – if not
present then assumed 1
• <readmode>
controls conversion of texel
returned by an access
·
cudaReadModeElementType: no conversion performed
·
cudeReadModeNormalizedFloat if type is integer, value
returned is mapped to [-1.0,1.0] for signed, and [0.0, 1.0] for unsigned
Note:
Optional – defaults to cudaReadModeElementType
Example
texture <float> texture_reference ;
We have
declared a texture of name “texture_reference” of type “float” of dimension
“1D” and readmode is “cudaReadModeElementType”
|
Step
2
Binding texture memory to your
texture reference in CUDA
Now we bind the texture reference to
the memory buffer using cudaBindTexture (). This basically tells to CUDA
runtime two things;
·
We intend to use the specified buffer as a
texture.
·
We intend to use the specified texture
reference as the texture’s “name”
cudaBindtexture (size *t
offset, const struct texture<T, dim, readMode> & tex , const void *
devptr, size_t size= UINT_MAX) ;
|
Binds
size bytes of
the memory area pointed to by devPtr to texture reference tex. The channel descriptor is
inherited from the texture reference type. The offset parameter
is an optional byte offset as with the low-level cudaBindTexture(size_t*, const
struct textureReference*, const void*, const struct cudaChannelFormatDesc*,
size_t) function.
Any memory previously bound to tex is unbound.
Parameters:
offset
|
-
Offset in bytes
|
|
tex
|
-
Texture to bind
|
|
devPtr
|
-
Memory area on device
|
|
size
|
-
Size of the memory area pointed to by devPtr
|
Returns:
Example
HANDLE_ERROR ( cudaBindTexture( NULL, texture_reference, tobereference
, sizeinbytes ) );
Here we bind “tobereference” memory to “texture_reference”
starting from initially, specified by “NULL”( offset), and “sizeinbytes” in size
of memory, which is the size of memory referenced by “tobereference”.
|
At
this point, our textures are completely set up, and we’re ready to launch our
kernel.
Step 3
Reading texture memory from your
texture reference in CUDA Kernel
When we’re reading from textures in
the kernel, we need to use special functions to instruct the GPU to route our
requests through the texture unit and not through standard global memory. As a
result, we can no longer simply use square brackets to read from buffers; we
need to modify kernel function to use
Additionally,
there is another thing to be note in texture memory reading; since in all the
previous posts under CUDA programming section we were using global memory to
read data as either input or output. Now we need to change this scenario and use
texture memory that requires us to make some other changes too. Although it
looks like a function, tex1Dfetch
() is a compiler intrinsic. And since
texture references must be declared globally at file scope, we can no
longer pass the input and output buffers as parameters to our kernel function because
the compiler needs to know at compile time which textures tex1Dfetch
() is should be sampling.
Rather than passing pointers to input and output buffers as we
previously did in previous post’s in CUDA programming section, we will pass to kernel
function a Boolean flag “indicator” that
indicates which buffer to use as input and which to use as output.
Format of tex1Dfetch
()
tex1Dfetch - performs an
unfiltered texture lookup in a given sampler.
Synopsis
float4 tex1Dfetch (sampler1D samp, int4 S) ;
float4 tex1Dfetch (sampler1D samp, int4 S , int
texeloff) ;
int4 tex1Dfetch (isampler1D samp, int4 S) ;
int4 tex1Dfetch (isampler1D samp, int4 S , int
texeloff) ;
unsigned int4 tex1Dfetch (isampler1D samp, int4 S)
;
unsigned int4 tex1Dfetch (isampler1D samp, int4 S
, int texeloff) ;
|
Parameters
Samp: Sampler
to lookup.
S:
Coordinates
to perform the lookup. The level of detail is stored in the last component of
the coordinate vector.
texelOff: Offset to be added to
obtain the final texel.
Description
Performs an unfiltered texture lookup in sampler samp using coordinate S.
The level of detail is provided by the last component of the coordinate vector.
May use texel offset texelOff to compute final texel.
Profile Support
Template <class DataType>
Type tex1Dfetch( texture <DataType,
cudaTextureType1D,cudaReadModeElementType> texRef, int x ) ;
|
Example with different DataType
float tex1Dfetch( texture<unsigned char, cudaTextureType1D, cudaReadModeNormalizedFloat>
texRef,int x);
|
float tex1Dfetch(texture<signed char, cudaTextureType1D,
cudaReadModeNormalizedFloat> texRef, int x);
|
float tex1Dfetch(texture<unsigned short, cudaTextureType1D,
cudaReadModeNormalizedFloat> texRef,int x);
|
float tex1Dfetch( texture<signed short, cudaTextureType1D,
cudaReadModeNormalizedFloat> texRef, int x);
|
Important
It fetch
the region of linear memory bound to texture reference texRef using
integer texture coordinate x.
tex1Dfetch() only
works with non-normalized coordinates (Section 3.2.10.1.2), so only the border
and clamp addressing modes are supported. It
does not perform any texture filtering. For integer types, it may optionally
promote the integer to single-precision floating point.
Example of use
t =
tex1Dfetch ( texture_reference coordinate_x );
It reads
the pixel from image reference by “texture_reference” at the coordinate “x”
and value get assigned to “t”.
|
Step 3 : Final step at the end
At the end of the application
Rather than just freeing the global buffers, we also need to unbind textures:
Unbinding the texture memory from
your texture reference in CUDA
cudaError_t cudaUnbindTexture ( const struct
textureReference *texRef ) ;
|
This will unbind
your texture from texture memory.
Example
HANDLE_ERROR
( cudaUnbindTexture
( texture_reference ) ;
This will
unbind your texture_reference from texture memory.
|
Performance consideration of Texture memory
Texture memory can provide additional
speedups if we utilize some of the conversions that texture samplers can
perform automatically, such as unpacking packed data into separate variables or
converting 8- and 16-bit integers to
normalized floating-point numbers. We didn’t explore either of these
capabilities in this article, but they might be useful to you! Stay tuned!!
Somewhat important
If you have
understood texture memory perfectly then you can skip this.
Be hands on this documentation, this
will describe everything of Texture memory.
Summary
of this article
As we saw in the previous article with
constant
Memory, some of the benefit of texture memory comes as the result of
on-chip caching. This is especially noticeable in applications like image
processing: applications that have some spatial coherence to their data access
patterns.
We
talked about
·
What is Texture
memory in CUDA?
·
Why Texture
memory?
·
Where the
Texture memory resides?
·
How does
Texture memory work’s in CUDA?
·
How to use
Texture memory in CUDA?
·
Where to use
and where should not use Texture memory in CUDA?
·
Example of using
texture memory in CUDA, step by step.
·
Performance
consideration of Texture memory.
I hope you must like this article and
have learned texture memory and how to use texture memory in CUDA.
Got
Questions?
Feel
free to ask me any question because I'd be happy to walk you through step by
step!
Posts
Great post . It takes me almost half an hour to read the whole post. Definitely this one of the informative and useful post to me. Thanks for the share and plz visit my site Programming 21st and century provide offshore outsourcing service, freelance service, personal assistant,web development, customer service, marketing services.
ReplyDeletethank you for these details, it's very interesting very useful, I have a question I am trying to program an algorithm in CUDA C, I work on a data vector that I update after each iteration, what type memory can I use to reduce the execution time ? thank you
ReplyDeleteThank you for the clear articles in simple language
ReplyDeletethank you for sharing this information, it very useful
ReplyDeleteHi, it was great reading your article on texture memory. I am not able to access your github page that contains the complete code.
ReplyDeleteThere is a safe & effective Natural Herbal Medicine. For Total Cure Call +2349010754824, or email him drrealakhigbe@gmail.com For an Appointment with (Dr.) AKHIGBE contact him. Treatment with Natural Herbal Cure. For:Dengue Fever, Malaria. Painful or Irregular Menstruation. HIV/Aids. Diabetics. Vaginal Infections. Vaginal Discharge. Itching Of the Private Part. Breast Infection. Discharge from Breast. Breast Pain & Itching. Lower Abdominal Pain. No Periods or Periods Suddenly Stop. Women Sexual Problems. High Blood Pressure Chronic Disease. Pain during Sex inside the Pelvis. Pain during Urination. Pelvic Inflammatory Disease, (PID). Dripping Of Sperm from the Vagina As Well As for Low sperm count. Parkinson disease. Obesity, Lupus. Soreness/Injury Cancer. Tuberculosis. Zero sperm count. Bacteria, Impotence Fertility,Protoplasmic, Diarrhea. Hepatitis A&B, Rabies. Asthma. Quick Ejaculation. Gallstone, Cystic Fibrosis, Schizophrenia, Crubs, Cirrhosis, Premature Ejaculation. Herpes. Joint Pain. Stroke. Cornelia Disease, Weak Erection. Ovarian problem, HeartBurn, Erysipelas, Thyroid, Relapsing polychondritis, Discharge from Penis. Bronchial Problem, HPV. Hepatitis A and B. STD. Smallpox, Staphylococcus + Gonorrhea + Syphilis. Heart Disease. Pile-Hemorrhoid.rheumatism, Impotence, thyroid, Autism, Depression, Sepsis Bacteria, Penis enlargement, Prostate Problem, Waist & Back Pain. Male Infertility and Female Infertility. Etc. Take Action Now. contact him & Order for your Natural Herbal Medicine: +2349010754824 and email him drrealakhigbe@gmail.com Note For an Appointment with (Dr.) AKHIGBE.I suffered in Cancer for a year and three months dying in pain and full of heartbreak. One day I was searching through the internet and I came across a testimony of herpes cure by doctor Akhigbe. So I contacted him to try my luck, we talked and he sent me the medicine through courier service and with instructions on how to be drinking it.To my greatest surprise drinking the herbal medicine within three weeks I got the changes and I was cured totally. I don't really know how it happens but there is power in Dr Akhigbe herbal medicine. He is a good herbalist doctor.
ReplyDeleteBonus Cadoola może otrzymać każdy gracz, który zarejestrował się na stronie - Cadoola
ReplyDeletePython Course online
ReplyDeletePython online training
Thanks for sharing this post with us.Wikivela
ReplyDeleteit is really a good post.
ReplyDeleteHere I am sharing some more points on web designing training and institutes. interested people kindly check it out.
A2N Academy, one of the top-tier IT Skill Development Institutes in Bangalore, offers the best Web Designing course. Our skilled trainers recruited by the academy offer quality-based Web Designing Courses. Steadily, we guide our students to get placed in prominent web design companies through our online web designing course.
web designing course
web designing training online
I am so happy, I never believe I will be this happy again, after suffering from Herpes (HSV) which make me lose my job. I never felt sick or have any symptom, till all workers were ask to bring their doctor report, that was how I got tested and found out that am HSV positive, I lost my job because they believed its STD and is incurable. I was so depress and Devastated thinking of committing suicide. I explained this to my friend and she consoled me and gave me hope, she told me about one African Doctor who has the ability to cure diseases with Natural medicinal herbs and roots for 3 weeks. She directed me to Doctor Kabiki and I contact him . I contacted this doctor and told him about my condition and this traditional doctor prepared and ship a product to me and told me to use it for just 3 weeks and after I finish taking the product he told me to go for check up which I did and to my greatest surprise my results were negative, I did the test at three different hospital just to be sure and I was indeed cured from Herpes (HSV). Please help me share this news to others and different people living with STDs and other diseases. Email Doctor Kabiki via drkibakisolutiontemple@gmail.com or you can call his mobile number on +1 407 218 6382
ReplyDeleteI was cured of HERPES with the use of natural herbs. I love herbs so much. Most times, injections and drugs are just a waste of time. I was cured 8months ago, i suffered from Herpes for 2 years but with the help of Priest Babaka herbal medicine, I was cured within a few weeks of drinking the herbs He sent to me through courier delivery service. This same Priest also cured my Aunt from INFERTILITY, as soon as I heard she Been finding it difficult to CONCEIVE, i referred her to the Priest and she was cured after drinking his herbs. I have referred more than 15 persons and they were all cured from their various illness. Have you taken herbs before?. You have spent so much money on drugs, injections, surgeries etc and yet you have no good result to show for it. Priest Babaka is a Herbalist and a Spiritualist , I assure you of a cure if you drink his natural herbs and follow his Guidance. He has herbs that cures HIV, Herpes, Diabetics, Asthma, Hepatitis, etc. Contact Priest Babaka on email: babaka.wolf@gmail.com or Facebook at priest.babaka
ReplyDeleteIMBMS (Indian Medical Business Management System) is one of the most active retail suppliers providing thorough supply of various personal care products. We believe in distributing the utmost genuine and trusted range of skin whitening products & fairness cosmetics and whitening night creams throughout the nation.
ReplyDeleteSkin whitening injection
Thank you for sharing valuable post.
ReplyDeleteAutoCAD Course in Mumbai
AutoCAD Classes in Mumbai
AutoCAD Training in Mumbai
ReplyDeleteThis post is so useful and informative.Keep updating with more information.....
Python Training In Bangalore
Python Course In Bangalore
Cosyst Devices is a leading manufacturers and importers of PVC Strip curtains in Mumbai. Since 1993, Cosyst Devices have been providing cleaner environments to corporates, retail stores, factories, laboratories, hotels, and restaurants through their PVC Curtains. The usage of strip curtains has increased multiple times in the past few years. Space issues and multiple benefits of PVC strip curtains are major driving factors. It also acts as a divider without blocking the view. They are of utmost use in the food industry as it increases hygiene level, by blocking dust and other particles.
ReplyDeletePVC Strip curtain
Thanks for sharing wonderful knowledge. If you are looking for the best RAPID SYPHILIS TEST SINGAPORE . Visit Anteh Dispensary, they are the most reliable and trustworthy clinic and are ready with their best services, at affordable price along with attractive offers and discounts. Visit them now to know more!
ReplyDeleteThis comment has been removed by the author.
ReplyDeleteAsk him any Questions about herpes
ReplyDelete[…] It’s a crazy miracle product. Read my review here. […]
I was cured of herpes simplex virus his contact ___________Robinsonbuckler11@gmail. com.......................
this is the best herbal remedy…
Communication with the audience through blog is one of the core functions of dynamic work culture. Speak highly of by your peers to enhance the ability for building good relationships with your readers. Find A Real Estate Broker
ReplyDeleteYour style is unique in comparison to other people I've read stuff from. Thanks for posting when you've got the opportunity, Guess I'll just book mark this site.
ReplyDeletehttps://infocampus.co.in/web-development-training-in-bangalore.html
https://infocampus.co.in/full-stack-development-training-in-marathahalli.html
React JS Training in Bangalore
ReplyDeletethanks for valuable information about cuda programming , keep posting Java Training In Pune
ReplyDeleteCheck best 10 Casino on the world List ranking Best offer for gamlber funs
ReplyDeleteNice blog article that I have read today. Keep uploading these types of Articles regulerly. Also, refer Data Science Course in Kolhapur
ReplyDeleteUseful post Thanks for sharing it that truly valuable knowledge about similar topic. python training in satara
ReplyDeleteCured from (HSV)-2, via__________________________ R.buckler11@gm a i l. com],…
ReplyDelete🙂 ~ Blessings!
HE CURES ALL.............
HERPES 1&2
HEPATITIS
FIBROID
PROSTATE CANCER
ERECTILE DYSFUNCTION
Nice post
ReplyDeleteDigital Marketing Training in Warangal
Great article! Your clear explanation of texture memory in CUDA and the practical example make complex concepts accessible. I appreciate the step-by-step approach, which enhances understanding for both beginners and experienced programmers. Keep up the excellent work!
ReplyDeletecyber security internship for freshers | cyber security internship in chennai | ethical hacking internship | cloud computing internship | aws internship | ccna course in chennai | java internship online
